JVM类加载器

刚看完《Java高并发编程详解——多线程与架构设计》的第10章，实验一下类似Tomcat的热加载的方法。

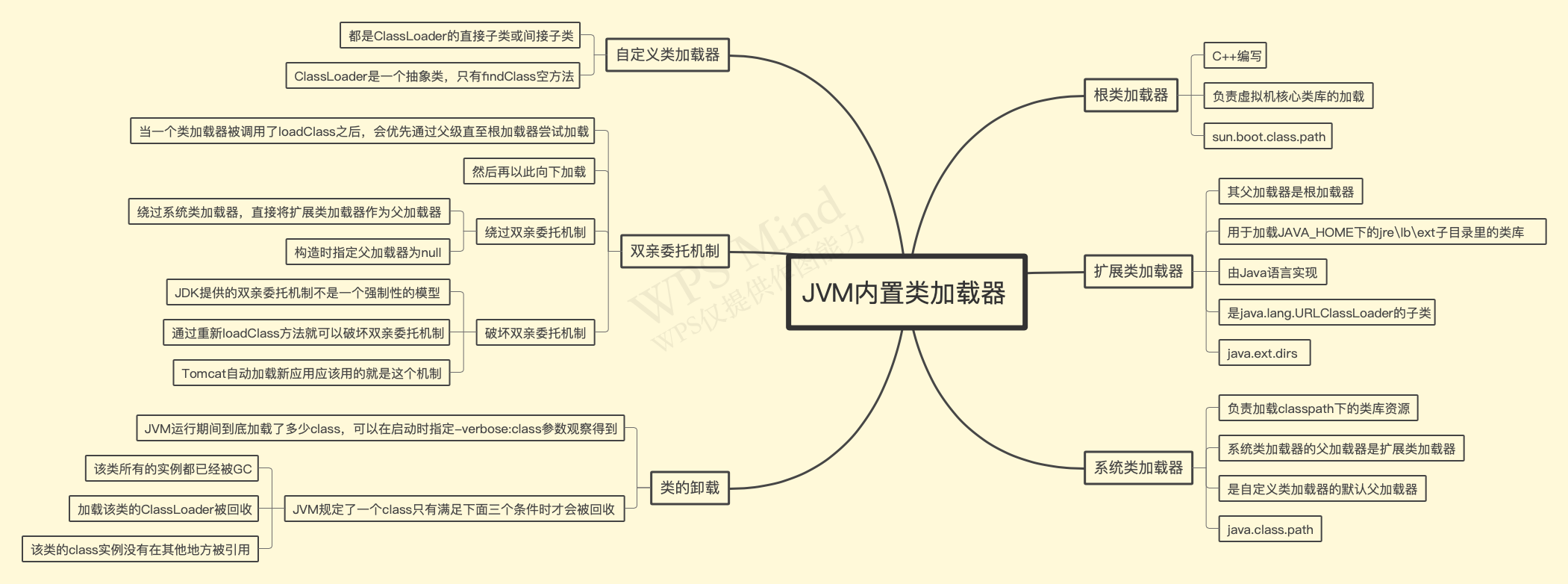

这一章的主要内容如下图

JVM内置类加载器

背景

讲到基于类的加载和卸载来实现功能热更新时，我就想到了Tomcat可以检测webapps中的war包的变化来重新加载新的应用，所以就通过本章介绍的内容扩展一下，自己实现一个热加载功能。

需求

当指定目录下的class文件发生变化时，系统能及时感知并重新加载。

实现

指定一个存放class文件的目录，如/tmp/classloader/
在其中放一个class文件，如Child.class，开始时只有一个walk()方法
系统每隔1秒中检测一次该目录中文件是否更新，如果更新了则重新加载
看是否可以通过反射拿到新类的方法列表

源码

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62


package fun.happyhacker;

import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;

public class MyClassLoader extends ClassLoader {
    private static final Path CLASS_DIR = Paths.get("/tmp/classloader/");

    private final Path classDir;

    public MyClassLoader() {
        super();
        this.classDir = CLASS_DIR;
    }

    public MyClassLoader(String classDir) {
        this.classDir = Paths.get(classDir);
    }

    public MyClassLoader(ClassLoader parent) {
        super(parent);
        this.classDir = CLASS_DIR;
    }

    public MyClassLoader(ClassLoader parent, String classDir) {
        super(parent);
        this.classDir = Paths.get(classDir);
    }

    @Override
    protected Class<?> findClass(String name) throws ClassNotFoundException {
        byte[] classBytes = this.readClassBytes(name);
        if (classBytes.length == 0) {
            throw new ClassNotFoundException("Can not load the class " + name);
        }

        return this.defineClass(name, classBytes, 0, classBytes.length);
    }

    private byte[] readClassBytes(String name) throws ClassNotFoundException {
        String classPath = name.replace(".", "/");
        Path classFullPath = classDir.resolve(Paths.get(classPath + ".class"));
        if (!classFullPath.toFile().exists()) {
            throw new ClassNotFoundException("The class " + name + " not found");
        }

        try (ByteArrayOutputStream baos = new ByteArrayOutputStream()) {
            Files.copy(classFullPath, baos);
            return baos.toByteArray();
        } catch (IOException e) {
            throw new ClassNotFoundException("load the class " + name + " occur error.", e);
        }
    }

    @Override
    public String toString() {
        return "MyClassLoader";
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67


package fun.happyhacker;

import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.concurrent.TimeUnit;

public class Daemon {
    private static final String CLASS_PATH = "/tmp/classloader/";

    private static final String CLASS_NAME = "a.b.c.Child";
    private static final int CHECK_INTERVAL = 5;

    private long lastModified;

    private ClassLoader classLoader;
    private Class<?> klass;

    public static void main(String[] args) throws InterruptedException, ClassNotFoundException, NoSuchMethodException, InvocationTargetException, InstantiationException, IllegalAccessException {
        Daemon daemon = new Daemon();
        daemon.listen();
    }

    private void run() throws ClassNotFoundException, IllegalAccessException, InstantiationException, NoSuchMethodException, InvocationTargetException {
        if (classLoader == null) {
            classLoader = new MyClassLoader();
        }
        if (klass == null) {
             klass = classLoader.loadClass(CLASS_NAME);
        }
        Class<?> child = klass;

        System.out.println(child.getClassLoader());

        Object instance = child.newInstance();
        System.out.println(instance);

        Method[] methods = child.getDeclaredMethods();
        for (Method method : methods) {
            Method m = child.getMethod(method.getName());
            m.invoke(instance);
        }
    }

    private void listen() throws InterruptedException, ClassNotFoundException, NoSuchMethodException, InvocationTargetException, InstantiationException, IllegalAccessException {
        while (true) {
            Path classPath = Paths.get(CLASS_PATH);
            Path classFullPath = classPath.resolve(Paths.get(CLASS_NAME.replace(".", "/") + ".class"));
            System.out.println("class path " + classFullPath.toFile().getAbsolutePath());
            long newLastModified = classFullPath.toFile().lastModified();
            System.out.println("exists " + classFullPath.toFile().exists());
            System.out.println("new last modified: " + newLastModified);
            if (newLastModified > lastModified) {
                reload();
                run();
            }
            lastModified = newLastModified;
            TimeUnit.SECONDS.sleep(CHECK_INTERVAL);
        }
    }

    private void reload() {
        classLoader = null;
        klass = null;
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15


package a.b.c;

public class Child {
    public void walk() {
        System.out.println("I can walk");
    }

    public void speak() {
        System.out.println("I can talk");
    }

    public void write() {
        System.out.println("I can write");
    }
}

在/tmp/classloader/a/b/c中修改Child.java，修改之后执行javac Child.java会引起Child.class文件的变化，从而触发系统自动重新加载新的class文件，执行新的方法。

总结

对于Tomcat会更复杂一些，但也就是把加载一个单独的class文件升级成加载一个war包，原理是一样的。

不过我不太理解的是，为什么Tomcat不能实现热更新，也就是为什么不能像Nginx那样有一段时间是新老服务共存，等已经连接到老的服务上的请求完成之后再停掉老服务呢？这个答案只能从Tomcat的源码中寻找了。
